MANUAL DISC FILTERS

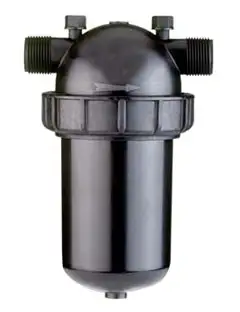

3/4" [0.75"] [20 mm] Disc irrigation filter, Arkal

• Arkal plastic 3/4" [20 mm] disc filter [fit both BSP and NPT Stds.]
• Max. flow rate:
• Good water quality: 4 m3/h [17.6 gpm]
• Average water quality: 3 m3/h [13.5 gpm]
• Applications:
Irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads



1" [25 mm] Short Disc water filter by arkal amiad

• Arkal short plastic 1" [25 mm] disc filter
• Max. flow rate:

p

Good water quality: 6 m3/h [26 gpm]

Average water quality: 4 m3/h [18 gpm]

• Applications:

Irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads

• Pressure gauge insertion points



1" [25 mm] Super Disc irrigation filter by arkal

• Arkal short plastic 1" [25 mm] disc filter
• Max. flow rate:

Good water quality: 8 m3/h [35 gpm]

Average water quality: 6 m3/h [26 gpm]

• Applications:

Irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads

• Pressure gauge insertion points



1 1/2" [1.5"] [40 mm] Short Disc irrigation filter by arkal

• Arkal short plastic 1 1/2" [1.5"] disc filter
• Max. flow rate:

Good water quality: 8 m3/h [35 gpm]

Average water quality: 6 m3/h [26 gpm]

• Applications:

Irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads

• Pressure gauge insertion points

p

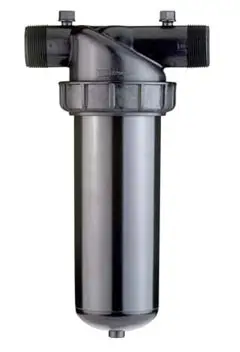

1 1/2" [1.5"] [40 mm] Super Disc irrigation filter by arkal

• Arkal short plastic 1 1/2" [1.5"] disc filter
• BSP or NPT male threads connections
• Max. flow rate:

Good water quality: 12 m3/h [53 gpm]

Average water quality: 10 m3/h [44 gpm]

• Applications:

Irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads

• Pressure gauge insertion points

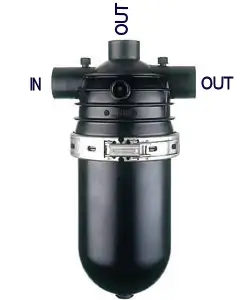

2" [50 mm] Dual Plastic disc water filter

Dual plastic 2" disc filter with a detachable spine - 2 Outlet options: in-line or 90 deg. angle

• Arkal short plastic 1 1/2" [1.5"] disc filter
• BSP or NPT male threads connections
• Heavy duty and robust filter, up to 10 Bar [145 PSI]
• Max. flow rate:

Good water quality: 25 m3/h [110 gpm]

Average water quality: 20 m3/h [88 gpm]

• Applications:

Irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads

• Pressure gauge insertion points

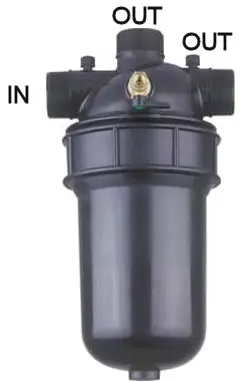

2" [50 mm] Leader Disc FILTER irrigation

Leader plastic 2" disc filter with a detachable spine with drain valve

• Arkal short plastic 1 1/2" [1.5"] disc filter
• Most valuable quality disc filter
• 2 Outlet options:

In-line or angle

Adapts to horizontal or vertical installation

• BSP or NPT male threads connections
• Max. flow rate:

Good water quality: 25 m3/h [110 gpm]

Average water quality: 20 m3/h [88 gpm]

• Applications:

Main filtration for small plots, secondary (control) filtration

• Pressure gauge insertion points
• Threads fit both BSP and NTP Standards
• Most cost effective filter in the market



2" [50 mm] Dual Lite Plastic disc water filter, arkal

Arkal dual lite plastic 2" disc filter

• 2 Outlet options: in-line or 90 deg. angle.
• 2" threads fit both standards: BSP and NPT
Filtration area / cost effective filter ! Up to 8.0 Bar [115 PSI] Only maximum.
• Flow rate:

  good water quality: 25 m3/h

  average water quality: 20 m3/h [88 gpm]

applications: control heads for small plots or large gardens, secondary control filter. - Pressure differential disc compression - Bottom outlet for drain valve

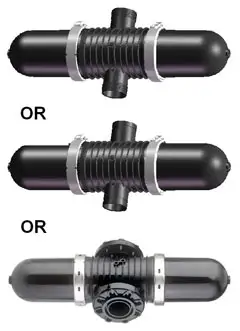

3" [75 mm] Leader TWIN Plastic disc water filter

TWIN plastic 3" disc filter with a detachable spine discs

Up to 9.5 Bar [140 PSI]

Maximum flow rate:

Good water quality: 50 m3/h [198 gpm]

Average water quality: 42 m3/h [132 gpm]

Applications:

Main filtration for small plot

Secondary (control) filtration

Pressure differential disc compression

High volume filter with increased flow capacity

Easy to open and close filter cover

Drain valve

Pressure gauge insertion point

Available connections: Threads, Grooved or Universal Flanges

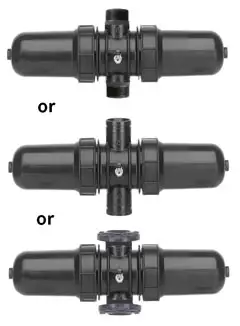

3" [75 mm] Twin Lite TDS Plastic disk water filter

Twin lite plastic 3" disk filter with a detachable spine

Most valuable quality disc filter

Large disc filtration volume

Up to 8.0 Bar [115 PSI]

Maximum flow rate:

Good water quality: 50 m3/h [198 gpm]

Average water quality: 42 m3/h [132 gpm]

Applications: main filtration for small plots, secondary (control) filtration

Pressure differential disc compression

High volume filter with increased flow capacity

Easy to open and close filter cover

Drain valve

Pressure gauge insertion point

Available connections: Threads, Grooved or Universal Flanges

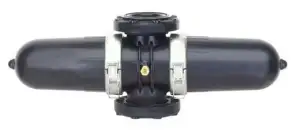

3" [75 mm] Twin Plastic disc water filter

Twin plastic 3" disc filter with a detachable spine

Best quality disc filter

Strong and robust Body

Up to 10 Bar [145 PSI]

Maximum flow rate:

Good water quality: 50 m3/h [176 gpm]

Average water quality: 42 m3/h [132 gpm]

Applications: main filtration for small plots, secondary (control) filtration

Grooved connection bands not included

Pressure differential disc compression

Robust design

High volume filter with increased flow capacity

Easy to open and close filter cover

Pressure gauge insertion point

Available connections: Threads, Grooved or Universal Flanges

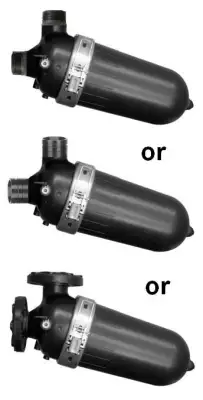

3" [75 mm] Leader Plastic disc water filter

Super angle plastic 3" disc filter with a detachable spine

The best quality disc filter

Maximum filtration flow rate:

Good water quality: 50 m3/h [264 gpm]

Average water quality: 40 m3/h [176 gpm]

Applications: main filtration for small plots, secondary (control) filtration

Available connections: BSP Threaded or Grooved or Flange

Universal flange standard

Differential disc compression

Robust design

High volume filter with increased flow capacity

Easy to open and close filter cover

Drain valve

Pressure gauge insertion point

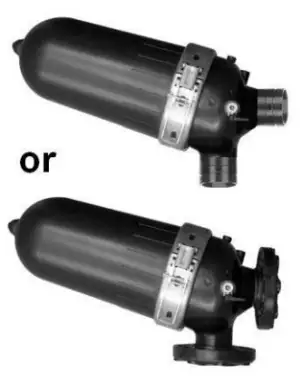

4" [100 mm] Leader Plastic disc water filter

Super angle plastic 4" disc filter with a detachable spine

The best quality disc filter

Maximum flow rate:

Good water quality: 60 m3/h [396 gpm]

Average water quality: 48 m3/h [331 gpm]

Applications: main filtration for large plots, secondary (control) filtration victalic band not included

Pressure differential disc compression

Robust design

High volume filter with increased flow capacity

Easy to open and close filter cover

Pressure testing ports are at the filters inlet and outlet

Drain valve

Pressure gauge insertion point

Available connections: Grooved or Flange

4" [100 mm] Line Plastic disc water filter

Super leader plastic 4" disc filter Most valuable quality disc filter

Maximum flow rate:

Good water quality: 110 m3/h [440 gpm]

Average water quality: 85 m3/h [330 gpm]

Applications: main filtration for large plots, secondary (control) filtration

Available connections: Grooved or Flange

Detachable spine

High flow capacity

Pressure differential disc compression

Pressure gauge insertion point

Drain valve

Large filtration area



6" [150 mm] Line Plastic disc water filter

Super leader plastic 6" disc filter

The best quality disc filter

Max. flow rate:

Good water quality: 160 m3/h [704 gpm]

Average water quality: 130 m3/h [618 gpm]

Applications: main filtration for large plots, secondary (control) filtration

Universal Feet all Flange standards

Grooved connectors for batteries are available

Detachable spine

High flow capacity

Pressure differential disc compression

Drain valve

Pressure gouge insertion point

Large filtration area
